300kg/h Full-Auto Laundry and Toilet Soap Production Line(Pro Version)

LAF300TL-P
The LAF300 Series offers three tiers of production line to match different customers’ needs: Economy Version, Standard Version and Premium Version.
Quantity
Contact Now
add to cart

Introduction

The LAF300 Pro series serves as our premium production line. It is well-equipped and incorporates a three-roller mill and a simplex refiner with built-in filtration screen to remove iron contaminants and other impurities from raw materials. It also delivers exceptional grinding performance that various additives, flavors, pigments, etc. in the raw materials can be mixed more evenly, and the soap produced is smooth and uniform in color. Consequently, it is not only ideal for customers who want to produce medicated soaps and beauty soaps requiring premium quality, but also a suitable match for cosmetics and pharmaceutical manufacturers seeking GMP-certified compliance.


Equipment List


No.

Equipment List

Model

Qty

1

Mixer

ST-M50

1

2

Belt Conveyor (Inclined)

ST-CONV300

1

3

Simplex Refiner

ST-SR300

1

4

Belt Conveyor (Inclined)

ST-CONV300

1

5

Three Roll Mill

ST-TRM150

1

6

Belt Conveyor (Inclined)

ST-CONV300

1

7

Duplex Plodder

ST-DP300

1

8

Auto Cutter

ST-AC200

1

9

Belt Conveyor (Flat)

ST-CONV100

1

10

Auto Horizontal Stamper

ST-ASC1

1

11

Refrigerator

ST-RFR6

1

12

Water Chiller

ST-C6

1

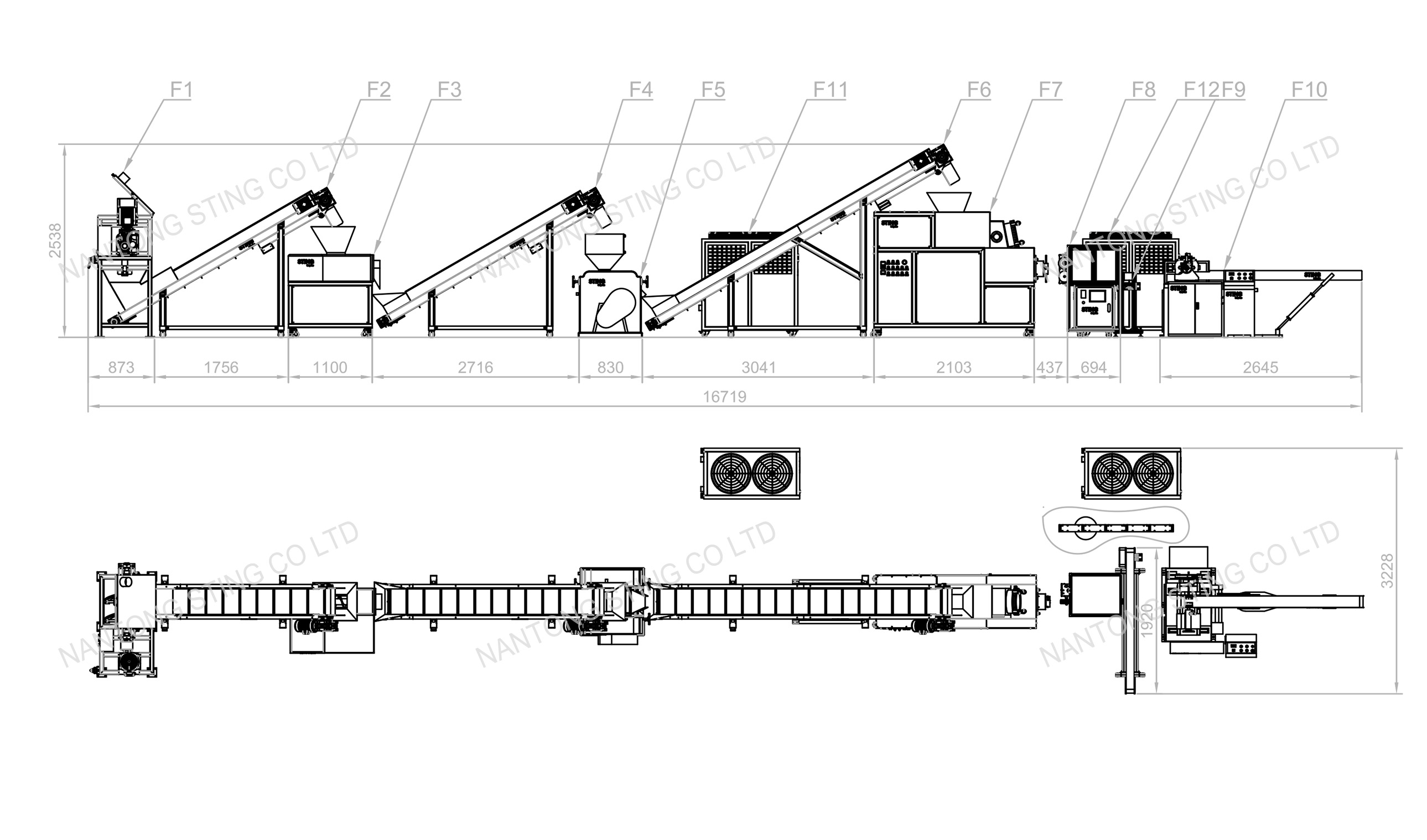

Equipment Layout



Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Luxury Soap, Beauty Soap,Medicated soap

Production Capacity

Laundry Soap: 300kg/h

Toilet Soap: 200kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L16719*W1920*H2538mm

Total Line Weight

5510kg

Voltage

380V,50Hz,3 Phases

Energy Consumption

Total Power

48.72kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

4m³/h

Temp. of Refrigerated Water

-20℃~-10℃

Flow Rate of Refrigerated Water

4m³/h

Flow Rate of Compressed Air

7.2m³/h

Pressure of Compressed Air

0.8Mpa
