400kg/h Full-Auto Toilet Soap Production Line(Economy Version)

LAF500T-E
The LAF500 Series offers three tiers of production line to match different customers' needs: Economy Version, Standard Version and Premium Version.
Quantity
Contact Now
add to cart

Introduction

The LAF300 E Series, namely Economy Version, are tailor-made for small-scale startups. With simplified equipment and affordable price, it features small but profitable investment, ideally suited for producing lightly colored soaps with basic formulations which do not need a lot of powder additives such as talcum powder, titanium dioxide, zeolite, etc. Therefore, it enables small businesses to enter the soap market quickly and open sales channels cost-effectively with high ROI (Return on Investment) and a short payback period.


Equipment List


No.

Equipment List

Model

Qty

F1

Mixer

ST-M100

1

F2

Belt Conveyor (Inclined)

ST-CONV350

1

F3

Three Roll Mill

ST-TRM260

1

F4

Belt Conveyor (Inclined)

ST-CONV350

1

F5

Duplex Vacuum Plodder

ST-DP500

1

F6

Auto Horizontal Stamper

ST-ASC1

1

F7

Refrigerator

ST-RFR6

1

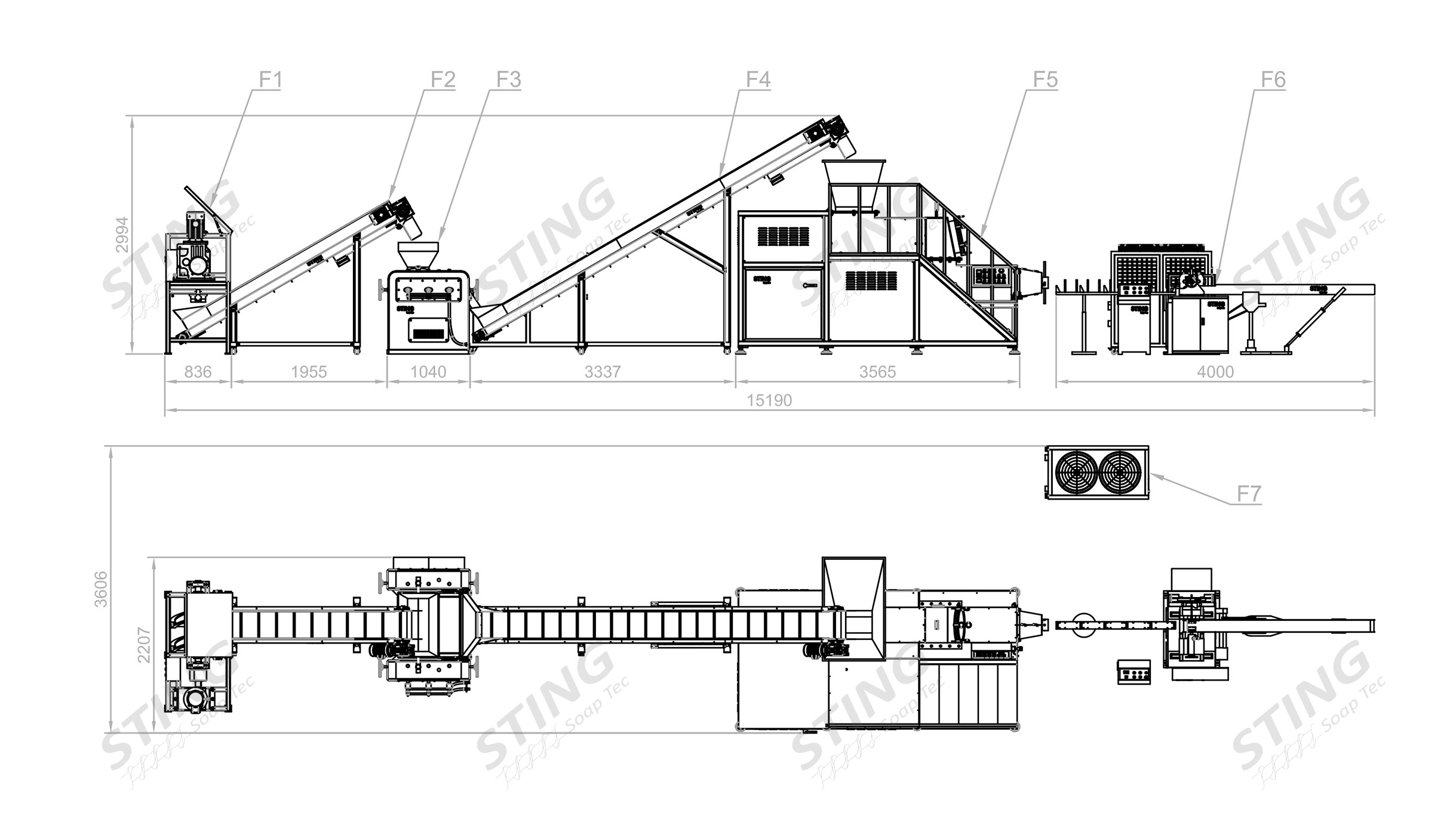

Equipment Layout




Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Ordinary Toilet Soap with simple ingredients

Production Capacity

400kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L15190*W3066*H2994mm

Total Line Weight

8820kg

Voltage

380V,50Hz,3 Phases/220V,50Hz, Single Phase

Energy Consumption

Total Power

76.49kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

10m³/h

Temp. of Refrigerated Water

-20℃~-10℃

Flow Rate of Refrigerated Water

4m³/h

Flow Rate of Compressed Air

7.2m³/h

Pressure of Compressed Air

0.8Mpa

Vacuum Flow

25m³/h
