500kg/h Full Auto Laundry and Toilet Soap Production Line(Standard Version)

LAF500TL-S
The LAF500 Series offers three tiers of production line to match different customers’ needs: Economy Version, Standard Version and Premium Version.
Quantity
Contact Now
add to cart

Introduction

The LAF500 S series is our standard production line, equipped with two three-roll mills which are capable of fuller and better material refinement. This processing enables various additives such as flavors, pigments, etc. in the raw materials to be more evenly mixed and the produced soaps to manifest a smooth texture and even color, making it suitable for clients who want to produce mid-to-high-end quality soaps.


Equipment List


No.

Equipment List

Model

Qty

F1

Mixer

ST-M100

1

F2

Belt Conveyor (Inclined)

ST-CONV350

1

F3

Three Roll Mill

ST-TRM260

1

F4

Belt Conveyor (Inclined)

ST-CONV350

1

F5

Three Roll Miller

ST-TRM260

1

F6

Belt Conveyor (Inclined)

ST-CONV350

1

F7

Duplex Vacuum Plodder

ST-DP500

1

F8

Auto Cutter

ST-AC200

1

F9

Belt Conveyor (Flat)

ST-CONV100

1

F10

Auto Horizontal Stamper

ST-ASC1

1

F11

Refrigerator

ST-RFR6

1

F12

Water Chiller

ST-C12

1

F13

Vacuum Pump

ST-VP25

1

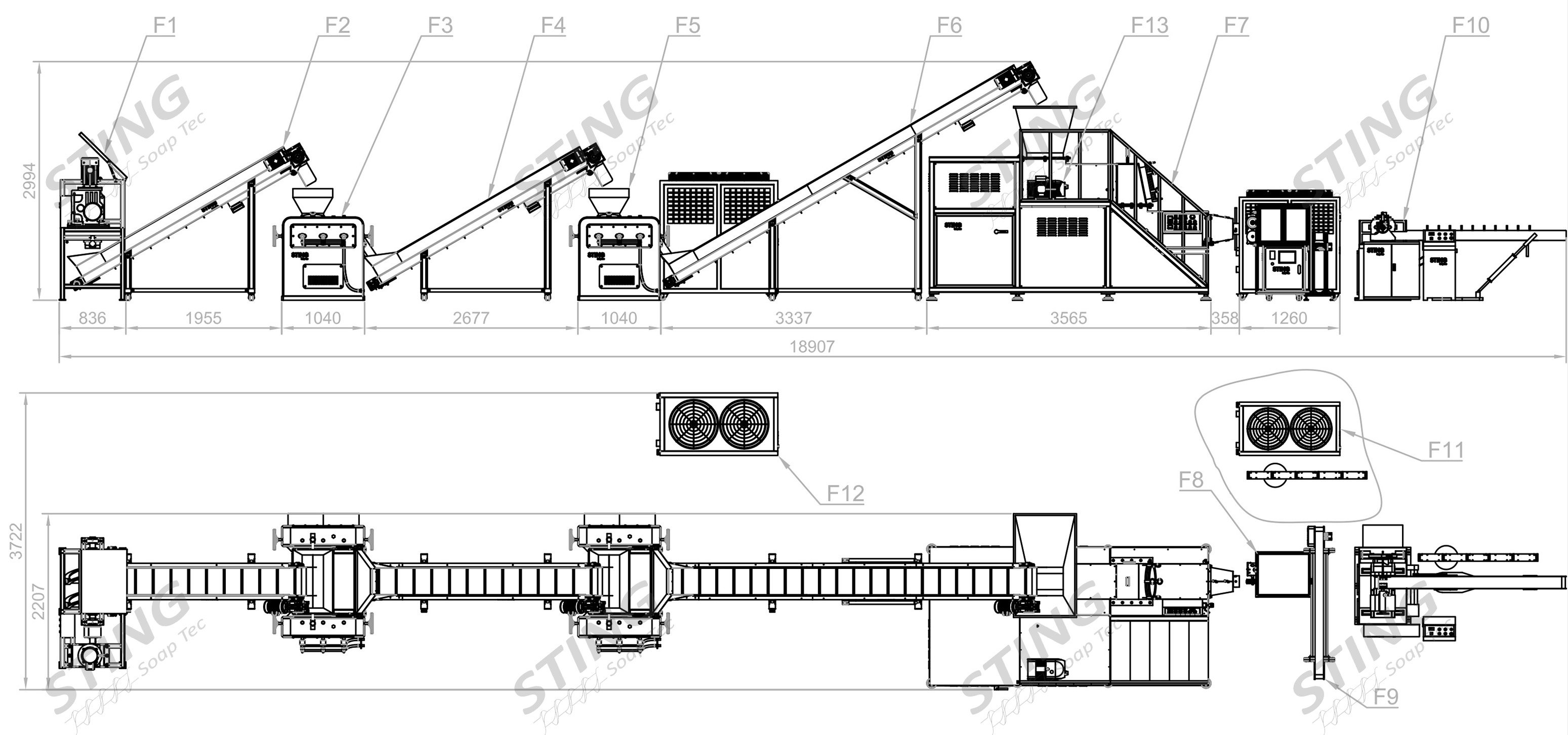

Equipment Layout




Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Laundry Soap & Toilet Soap with a variety of powder additives

Production Capacity

Laundry Soap: 500kg/h

Toilet Soap: 400kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L18907*W2207*H2994mm

Total Line Weight

11250 kg

Voltage

380V,50Hz,3 Phases/220V,50Hz, Single Phase

Energy Consumption

Total Power

89.91kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

10m³/h

Temp. of Refrigerated Water

-20℃~-10℃

Flow Rate of Refrigerated Water

4m³/h

Flow Rate of Compressed Air

7.2m³/h

Pressure of Compressed Air

0.8Mpa

Vacuum Flow

25m³/h
