high capacity soap production line
high capacity soap production line
auotomatic soap finishing line dual-use for beauty soap and medicated soap
2-in-1 soap making machine for high quality laundry and toilet soap production
high capacity soap production line

500kg/h Full auto laundry and toilet soap production line(Pro Version)

LAF500TL-P
The LAF500 Series offers three tiers of production line to match different customers’ needs: Economy Version, Standard Version and Premium Version.
Quantity
Contact Now
add to cart

Introduction

The LAF300 E Series, namely Economy Version, are tailor-made for small-scale startups. With simplified equipment and affordable price, it features small but profitable investment, ideally suited for producing lightly colored soaps with basic formulations which do not need a lot of powder additives such as talcum powder, titanium dioxide, zeolite, etc. Therefore, it enables small businesses to enter the soap market quickly and open sales channels cost-effectively with high ROI (Return on Investment) and a short payback period.


Equipment List


No.

Equipment List

Model

Qty

F1

Sigma Mixer

ST-SM100

1

F2

Belt Conveyor (Inclined)

ST-CONV350

1

F3

Simplex Refiner

ST-SR500

1

F4

Belt Conveyor (Inclined)

ST-CONV350

1

F5

Three Roll Mill

ST-TRM260

1

F6

Belt Conveyor (Inclined)

ST-CONV350

1

F7

Duplex Vacuum Plodder

ST-DP500

1

F8

Auto Cutter

ST-AC200

1

F9

Belt Conveyor (Flat)

ST-CONV100

1

F10

Auto Vertical Stamper

ST-ASC3

1

F11

Belt Conveyor (Inclined)

ST-CONV270

1

F12

Belt Conveyor (Inclined)

ST-CONV350

1

F13

Refrigerator

ST-RFR12

1

F14

Water Chiller

ST-C15

1

F15

Vacuum Pump

ST-VP25

1

F16

Vacuum Pump

ST-VP60

1

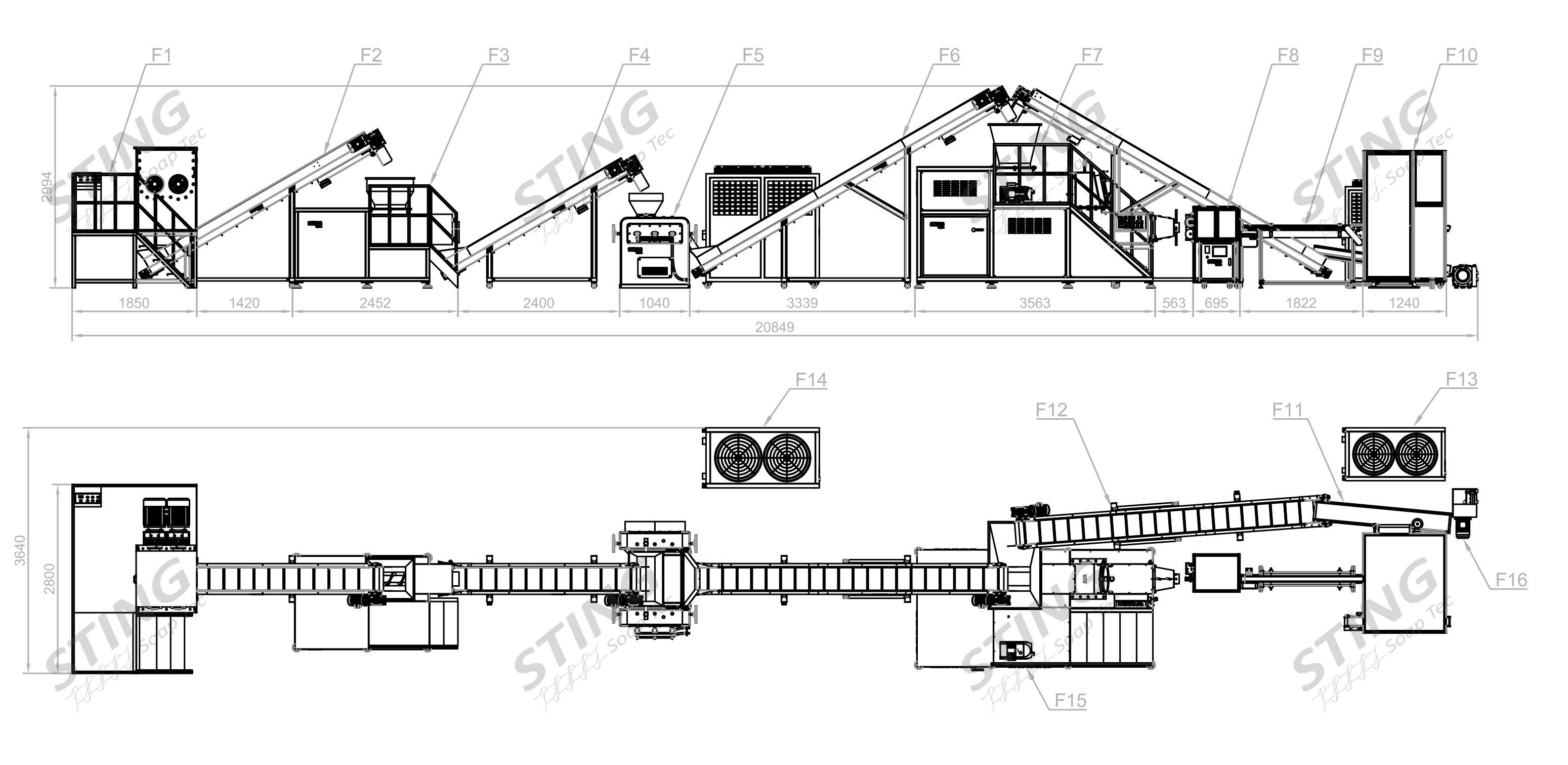

Equipment Layout




Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Luxury Soap, Beauty Soap, Medicated soap

Production Capacity

Laundry Soap: 500kg/h

Toilet Soap: 400kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L20849*W2800*H2994mm

Total Line Weight

13496kg

Voltage

380V,50Hz,3 Phases

Energy Consumption

Total Power

131.14~131.54kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

12m³/h

Temp. of Refrigerated Water

-20℃~-10℃

Flow Rate of Refrigerated Water

8m³/h

Flow Rate of Compressed Air

54m³/h

Pressure of Compressed Air

0.8Mpa

Vacuum Flow

85m³/h
