400~800kg/h Laundry and toilet soap production line(Standard version)

LAP100-B
The LAP series is designed for beginners in a family workshop. The equipment is lightweight, easy to operate and occupies a small area.
Quantity
Contact Now
add to cart

Introduction

The LAF300 E Series, namely Economy Version, are tailor-made for small-scale startups. With simplified equipment and affordable price, it features small but profitable investment, ideally suited for producing lightly colored soaps with basic formulations which do not need a lot of powder additives such as talcum powder, titanium dioxide, zeolite, etc. Therefore, it enables small businesses to enter the soap market quickly and open sales channels cost-effectively with high ROI (Return on Investment) and a short payback period.


Equipment List


No.

Equipment List

Model

Qty

F1

Homogenization Mixer

ST-HM300

1

F2

Simplex Refiner

ST-SR300

1

F3

Aluminum Profile Belt Conveyor (Inclined)

ST-CONV300

1

F4

Three Roll Mill

ST-TRM150

1

F5

Aluminum Profile Belt Conveyor (Inclined)

ST-CONV300

1

F6

Simplex Plodder

ST-SP100

1

F7

Auto Cutter

ST-AC200

1

F8

Semi-Auto Hydraulic Stamper

ST-S30

1

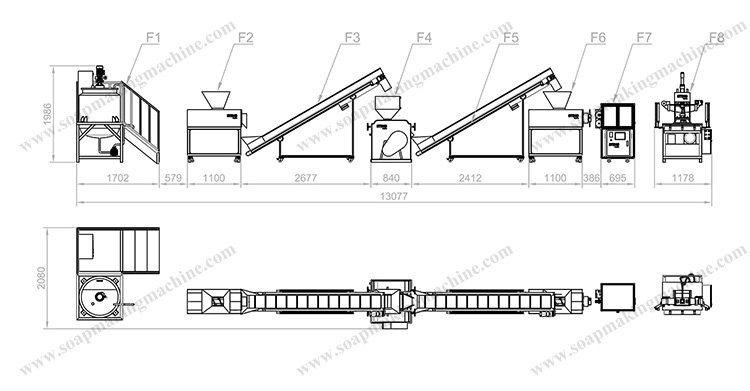

Equipment Layout




Technical Parameters


Applicable Raw Materials

Oil/Glycerin/Amino Acids

Types of Finished Goods

Laundry Soap & Toilet Soap

Production Capacity

400~800kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L13077*W2080*H1986mm

Total Line Weight

2250kg

Voltage

380V,50Hz, 3 Phases

Energy Consumption

Total Power

24.9kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

4m3/h

Flow Rate of Compressed Air

7.2m3/h

Pressure of Compressed Air

0.8Mpa
